Logic Blox Vintage

Functioning replicas of 1950's mainframe computer components. Compatible with all Logic Blox components and prefabs. Interconnect and assemble switches, tubes, displays, counters and lamps into working computer modules, custom control panels and historic mainframes.

Features:

Interact with animations, audio sources and other game objects
Choose button colors, illumination styles and number face styles
Run global functions (reset, led enable, show links)
LOD groups provide for massive circuit sizes

Detailed user guide Package Includes prefabs for:

12 switch/dial styles
3 digit thumbwheel - Nixi number tube
Dekatron counting tube - Mechanical relay
Brass lamp and panel bulb
27 Illuminated label buttons
10 Numbered dial face styles
Logic Blox primitive gates and switches

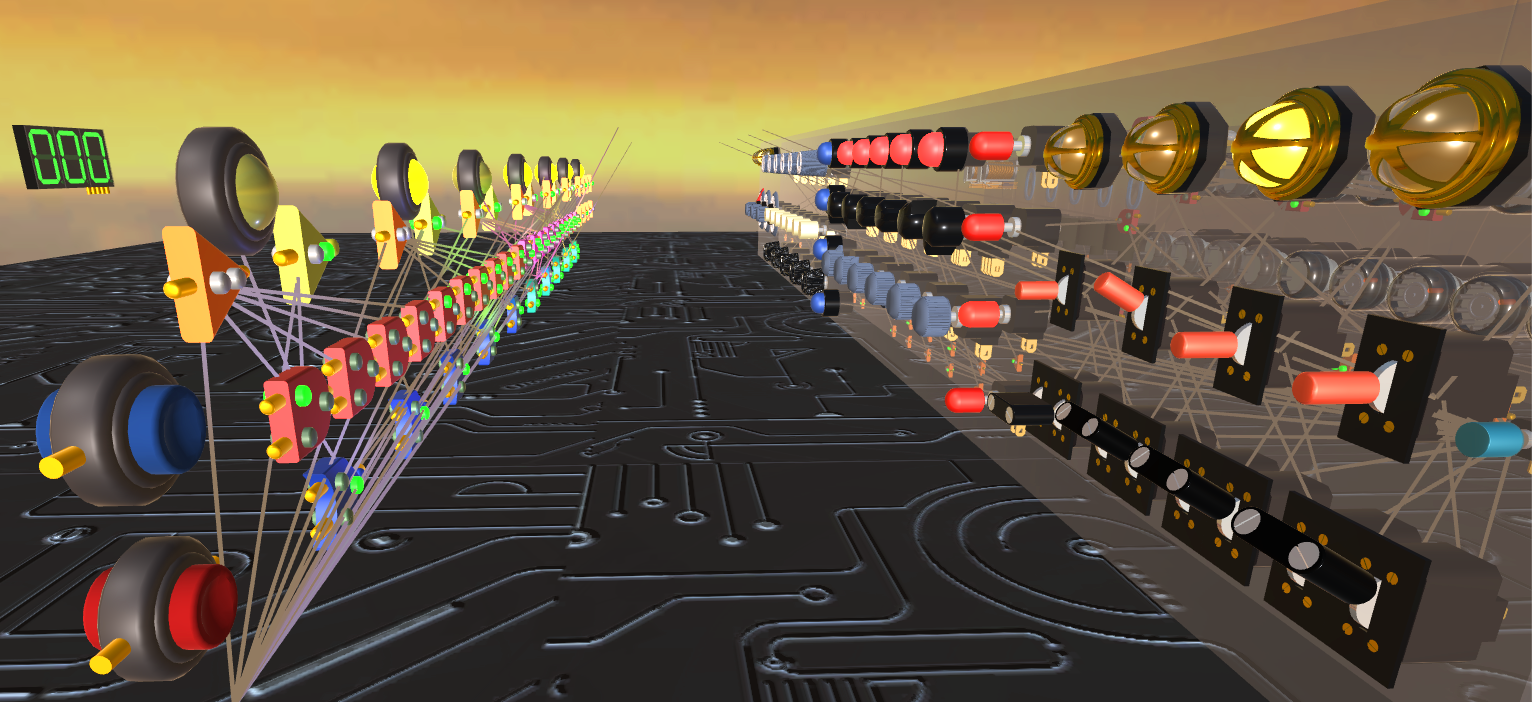

switchwall

Obtain components and props from Unity Asset Store:

Logic Blox Vintage switches, tubes and components

Vintage component details

Class: ThumbWheel, Type: ThumbWheel 3 digit wheel counter 3 x (0 -9) with store and send.

Buttons	Pins
But0 - Digit one up But1 - Digit one down But2 - Digit two up But3 - Digit two down But4 - Digit three up But5 - Digit three down	Pin0 - Digit one up Pin1 - Digit one down Pin2 - Digit two up Pin3 - Digit two down Pin4 - Digit three up Pin5 - Digit three down Pin6 - Data Out Pin7 - Data Send
Activating Send Data(pin 7) will trigger x pulses to Data Out(pin6) (x=sum of all digits). Counter will count backwards until count reaches 0.

Class: TriSwitch, Type: TriSwitch - Three position switch – up/middle/down

Buttons	Pins
But0 – Flip up But1 – Flip Down	Pin0 – Flip up Pin1 – Flip Down Pin2 – Up state Pin3 – Down state
Switch has 3 positions up, middle, down. Middle position is off

Class: Display, Type: Nixi – 10 digit display 0-9 with reverse, store and dump

Pins
Pin0 – Count Pin1 – Direction down Pin2 – Data state Pin3 – Reset Pin4 – Carry out	Pin5 – nc Pin6 – nc Pin7 – nc Pin8 - nc
Activating pin 1 reverses count direction. Carry out pin pulses when count transitions from 9 to 0. Activating reset pin resets digit to 0.

Class: Display, Type: Dekatron – 10 decimal counter with carry and store.

Pins
Pin0 – Advance Pin1 – Direction down Pin2 – Data state Pin3 – Reset Pin4 – Carry out		Pin5 – nc Pin6 – nc Pin7 – nc Pin8 - nc
Activating pin 1 reverses count direction. Carry out pin pulses when count transitions from 9 to 0 Activating reset pin resets to Led0 on

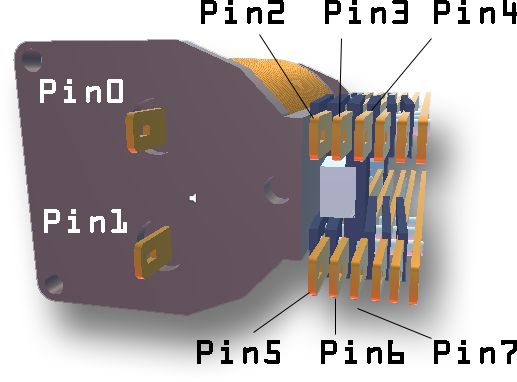

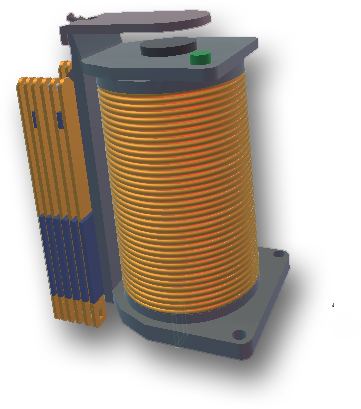

Class: Relay Type: Relay– SPST mechanical relay with selectable common

Pins
Pin0 – Relay On Pin1 – Relay State Pin2 – NO-1 Pin3 – Com-1 Pin4 – NC-1	Pin5 – NO-2* Pin6 – Com-2* Pin7 – NC-2*
* DPDT upgrade coming soon

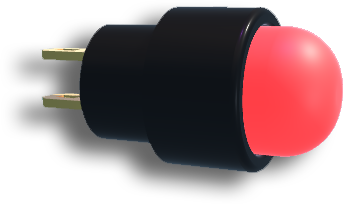

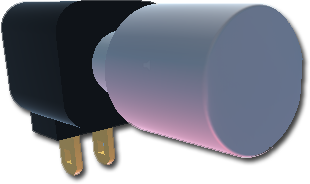

Gate (push button)	Gate (Lamp)	Gate (Lamp)

Pin0 – Toggle on/off Pin1 – Switch state But0 – Press on/off	Pin0 – Toggle on/off Pin1 – Lamp state	Pin0 – Toggle on/off Pin1 – Lamp state
Can be momentary and or clock

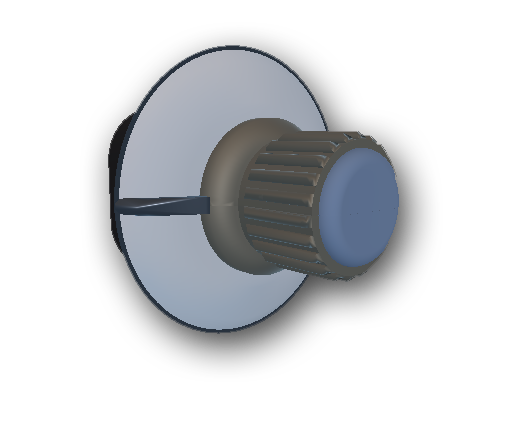

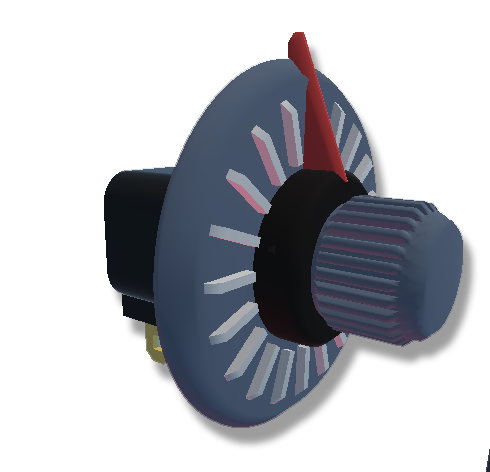

Axis(Dial)	Axis(Dial)	Gate (Dial)

But0 – Turn left But1 – Turn right Pin0 – Turn Left Pin1 – Turn right Pin2 – Increase value Pin3 – Decrease value	But0 – Turn left But1 – Turn right Pin0 – Turn Left Pin1 – Turn right Pin2 – Increase value Pin3 – Decrease value	But0 – Turn left But1 – Turn right Pin0 – Turn Left Pin1 – Turn right
Use in conjunction with sub functions to control prop volume and or clock rate	Use in conjunction with sub functions to control prop volume and or clock rate	Use in conjunction with sub functions to control prop volume and or clock rate

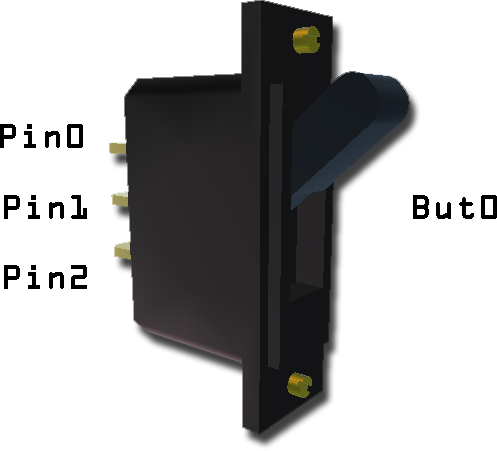

Gate (Breaker)	Gate (Switch)	Gate (Dial)

But0 – Flip on/off Pin0 – Flip on/off Pin1 – Switch state	But0 – Toggle on/off Pin0 – Toggle on/off Pin1 – Switch state	But0 – Turn left But1 – Turn right Pin0 – Turn Left Pin1 – Turn right Pin2 – Increase value Pin3 – Decrease value
On off toggle effect	Multiple button labels to choose from including: Abort, Clear, Dump, Reset, Shift, Start, Stop	Use in conjunction with sub functions to control prop volume and or clock rate

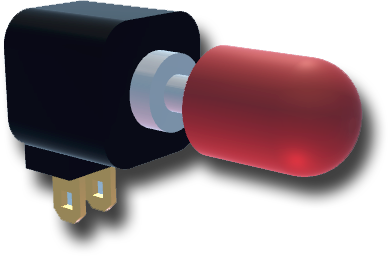

Gate (Switch)	Gate (Switch)	Gate (Dial)

But0 – Flip on/off Pin0 – Flip on/off Pin1 – Switch state	But0 – Turn left But1 – Turn right Pin0 – Turn Left Pin1 – Turn right	But0 – Turn left But1 – Turn right Pin0 – Turn Left Pin1 – Turn right
On off toggle effect	Use in conjunction with sub functions to control prop volume and or clock rate	Use in conjunction with sub functions to control prop volume and or clock rate
